Announcing Flux 2.7 GA

We are thrilled to announce the release of Flux v2.7.0! Here you will find highlights of new features and improvements in this release.
By Stefan Prodan |
Tags:

We are thrilled to announce the release of Flux v2.7.0! In this post, we highlight some of the new features and improvements included in this release.

Highlights

Flux v2.7 marks the General Availability (GA) of the image update automation features and comes with new APIs ExternalArtifact and ArtifactGenerator for advanced source composition and decomposition patterns.

In this release, we have also introduced several new features to the Flux controllers, including watching for changes in ConfigMaps and Secrets references, extended readiness evaluation of dependencies with CEL expressions, and support for OpenTelemetry tracing for Flux Kustomization and HelmRelease reconciliation.

In ecosystem news, there is a new release of Flux Operator that comes with in-cluster image update automation features, that can be used for GitLess GitOps workflows.

General availability of Image Update Automation

This release marks the General Availability (GA) of Flux Image Automation APIs and controllers. The image-reflector-controller and image-automation-controller work together to update Kubernetes manifests in Git repositories when new container images are available in container registries.

The following APIs have been promoted to stable v1:

The ImagePolicy API now supports the .spec.suspend field to pause and resume the policy evaluation.

The ImageUpdateAutomation API gains support for Git sparse checkout. To enable this optimization, the image-automation-controller can be configured with the --feature-gates=GitSparseCheckout=true flag.

In addition, the image-automation-controller can now be configured to use Kubernetes Workload Identity for authenticating with AzureDevOps repositories.

Breaking changes:

  • The image-reflector-controller autologin flags which were deprecated since 2023 are now removed. Users should set ImageRepository.spec.provider to the appropriate cloud provider for their container registry.
  • The ImageUpdateAutomation commit template fields .Updated and .Changed.ImageResult which were deprecated since 2024 are now removed. Users should migrate to:
    • .Changed.FileChanges for detailed change tracking
    • .Changed.Objects for object-level changes
    • .Changed.Changes for a flat list of changes

Watching for changes in ConfigMaps and Secrets

Starting with Flux v2.7, the kustomize-controller, helm-controller and notification-controller gain support for reacting to changes in ConfigMaps and Secrets references.

The following references are now watched for changes:

  • Kustomization.spec.postBuild.substituteFrom
  • Kustomization.spec.decryption.secretRef
  • Kustomization.spec.kubeConfig.secretRef
  • Kustomization.spec.kubeConfig.configMapRef
  • HelmRelease.spec.valuesFrom
  • HelmRelease.spec.kubeConfig.secretRef
  • HelmRelease.spec.kubeConfig.configMapRef
  • Receiver.spec.secretRef

When a referenced ConfigMap or Secret changes, the controller will immediately trigger a reconciliation if the referenced object is labelled with reconcile.fluxcd.io/watch: Enabled.

To enable the watching of all referenced objects without the need to label them, the controllers can be configured with the --watch-configs-label-selector=owner!=helm flag.

Workload Identity Authentication for Remote Clusters

Starting with Flux v2.7, you can configure workload identity at the object level in the Kustomization and HelmRelease resources to authenticate with cloud providers when running Flux in the hub-and-spoke model.

This feature allows cluster admins to use cloud identities on the hub cluster to configure Flux authentication to spoke clusters, without the need to create and manage static kubeconfig Secrets.

For more details on how to configure secret-less authentication to remote clusters, please refer to the following guides:

Object-level Workload Identity

In Flux v2.7, we have completed the integration of Kubernetes Workload Identity at the object level for all Flux APIs that support authentication with cloud providers.

This includes the following resources:

  • Bucket.spec.serviceAccountName for authenticating with AWS S3, Azure Blob Storage and Google Cloud Storage.
  • GitRepository.spec.serviceAccountName for authenticating with Azure DevOps.
  • OCIRepository.spec.serviceAccountName for authenticating with AWS ECR, Azure Container Registry and Google Artifact Registry.
  • ImageRepository.spec.serviceAccountName for authenticating with AWS ECR, Azure Container Registry and Google Artifact Registry.
  • Kustomization.spec.decryption.serviceAccountName for authenticating with AWS KMS, Azure Key Vault and Google KMS.
  • Kustomization.spec.kubeConfig.configMapRef.name for authenticating with remote clusters on AWS EKS, Azure AKS and Google GKE.
  • HelmRelease.spec.kubeConfig.configMapRef.name for authenticating with remote clusters on AWS EKS, Azure AKS and Google GKE.
  • Provider.spec.serviceAccountName for authenticating with Azure DevOps, Azure Event Hub and Google Pub/Sub.

For more details on how to configure object-level workload identity for Flux, see the following docs:

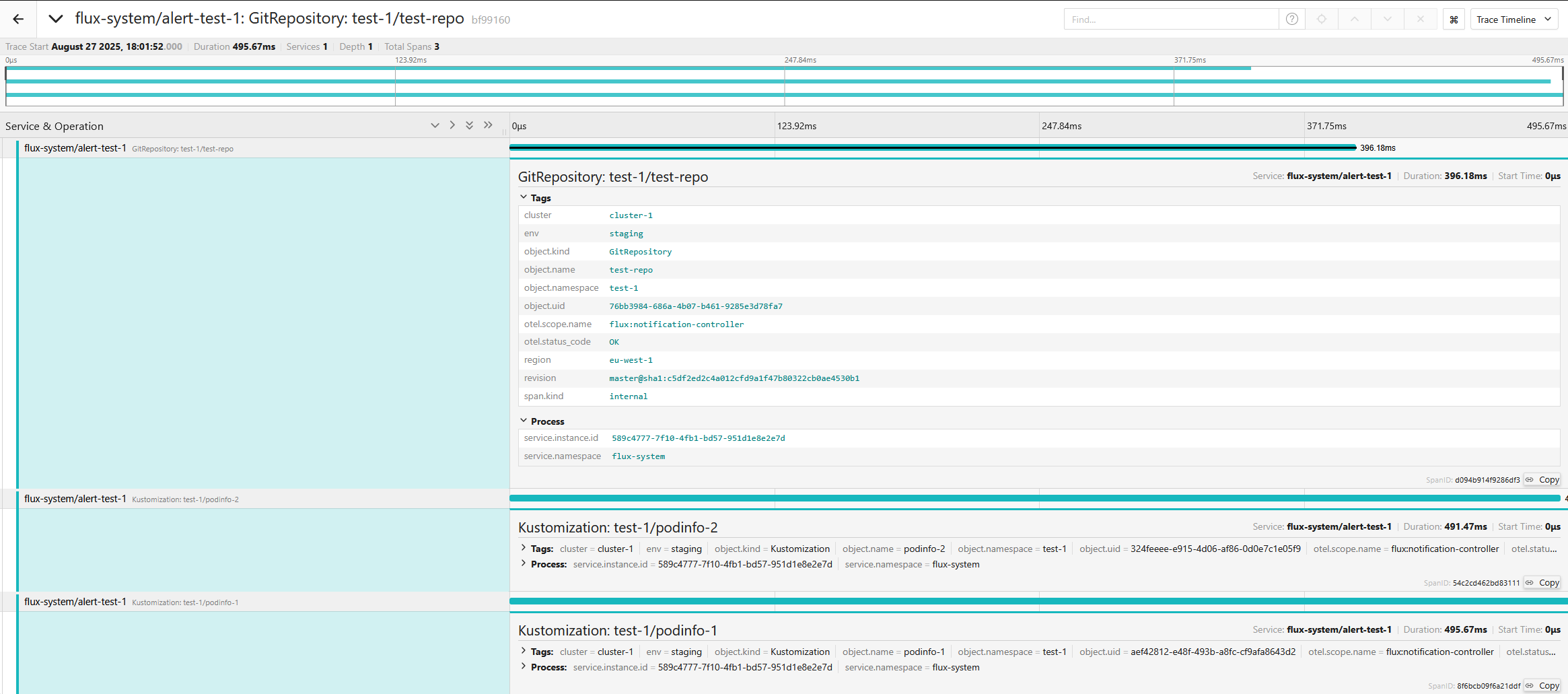

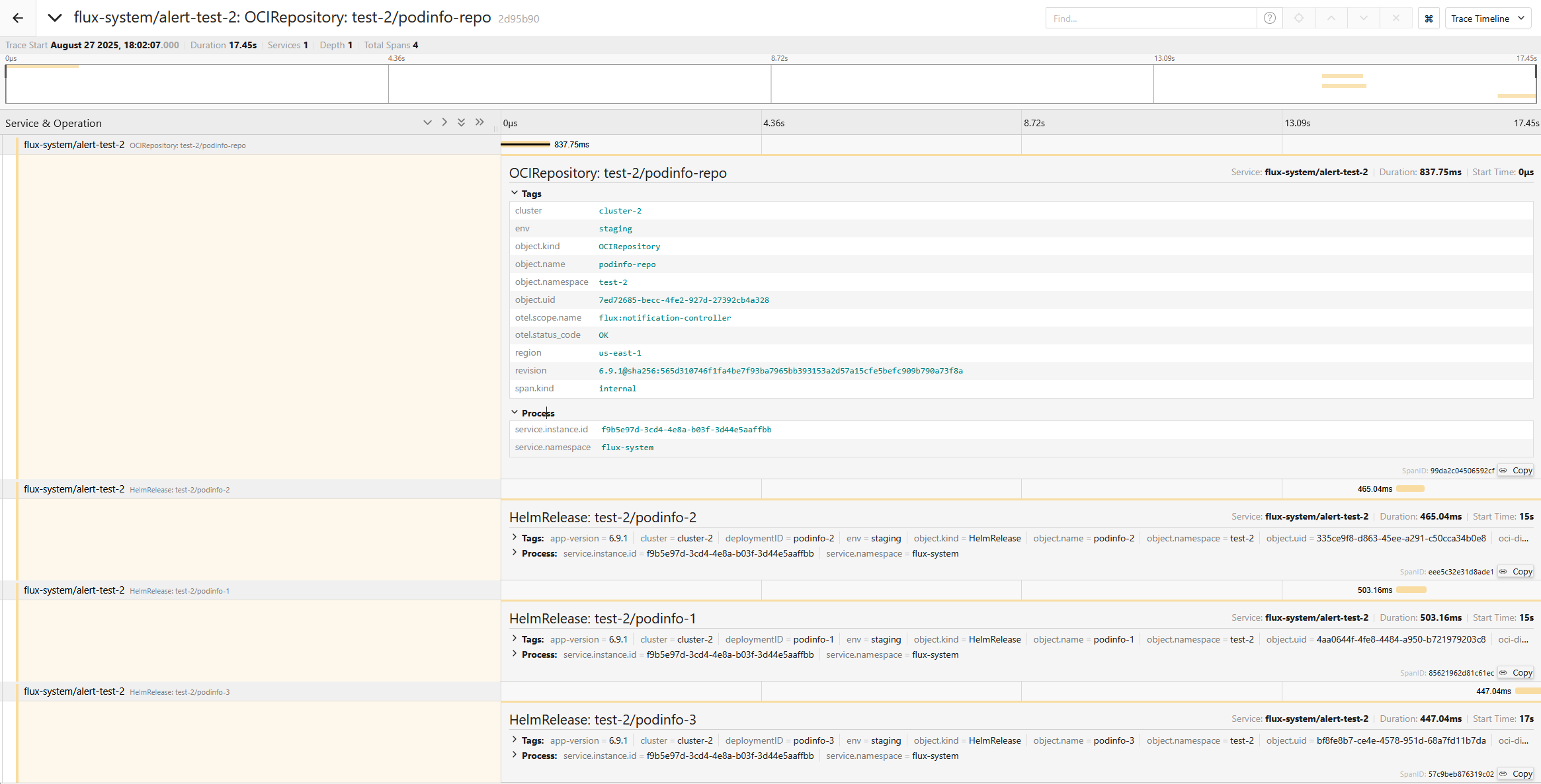

OpenTelemetry Tracing

Starting with Flux v2.7, users can enable OpenTelemetry tracing for Flux reconciliations by configuring a Provider of type otel:

apiVersion: notification.toolkit.fluxcd.io/v1beta3
kind: Provider
metadata:
  name: jaeger
  namespace: flux-system
spec:
  type: otel
  address: http://jaeger-collector.jaeger:4318/v1/traces

The notification-controller converts Flux events into OTEL spans with proper trace relationships based on the Flux object hierarchy. Source objects (GitRepository, HelmChart, OCIRepository, Bucket) create root spans, while Kustomization and HelmRelease objects create child spans within the same trace. Each span includes event metadata as attributes and uses the alert name and namespace as the service identifier.

For more details on how to configure OpenTelemetry tracing for Flux, please refer to the notification-controller documentation.

Controller Improvements

  • The GitRepository API gains support for mTLS in GitHub App authentication.
  • The Kustomization API now supports CEL expressions for extended readiness evaluation of dependencies.
  • The Kustomization API gains a new field .spec.ignoreMissingComponents for ignoring missing Kustomize components in the source.
  • The kustomize-controller now supports global SOPS decryption for Age keys, allowing centralized management of decryption keys.
  • The kustomize-controller can be configured to cancel ongoing health checks when a new source revision is detected with the --feature-gates=CancelHealthCheckOnNewRevision=true flag.
  • The HelmRelease API now supports CEL expressions for extended readiness evaluation of dependencies.
  • The HelmRelease API gains a new strategy called RetryOnFailure for better handling of release failures.
  • The Provider API now supports setting proxy via spec.proxySecretRef and mTLS via spec.certSecretRef.
  • The Provider API has been extended with support for Zulip and OpenTelemetry tracing.

CLI Improvements

  • The flux bootstrap and flux install commands now support the --components-extra=source-watcher flag to enable the new source-watcher component.
  • A new flux migrate command has been added to migrate Flux resources stored in Kubernetes etcd to their latest API version.
  • The flux debug command gains a new --show-history flag to display the reconciliation history of Flux objects.
  • The flux diff command now handles the kustomize.toolkit.fluxcd.io/force: Enabled annotation.
  • The flux create hr command gains a new --storage-namespace flag for changing the namespace of Helm storage objects.
  • New commands were added for ImagePolicy resources:
    • flux reconcile image policy
    • flux suspend image policy
    • flux resume image policy
  • New commands were added for ArtifactGenerator resources:
    • flux get artifact generator
    • flux export artifact generator
    • flux tree artifact generator
    • flux events --for ArtifactGenerator/<name>

Artifact Generators

Flux v2.7 comes with a new component that can be enabled at bootstrap time with the --components-extra=source-watcher flag.

The source-watcher controller implements the ArtifactGenerator API which allows Flux users to:

  • Compose multiple Flux sources (GitRepository, OCIRepository, Bucket) into a single deployable artifact
  • Decompose monorepos into multiple independent artifacts with separate deployment lifecycles
  • Optimize reconciliation by only triggering updates when specific paths change
  • Structure complex deployments from distributed sources maintained by different teams

Multiple Source Composition

The ArtifactGenerator can be used to combine multiple sources into a single deployable artifact, for example, you can combine upstream Helm charts from OCI registries with your organization’s custom values and configuration overrides stored in Git:

apiVersion: source.extensions.fluxcd.io/v1beta1
kind: ArtifactGenerator
metadata:
  name: podinfo
  namespace: apps
spec:
  sources:
    - alias: chart
      kind: OCIRepository
      name: podinfo-chart
    - alias: repo
      kind: GitRepository
      name: podinfo-values
  artifacts:
    - name: podinfo-composite
      originRevision: "@chart"
      copy:
        - from: "@chart/"
          to: "@artifact/"
        - from: "@repo/charts/podinfo/values.yaml"
          to: "@artifact/podinfo/values.yaml"
          strategy: Overwrite
        - from: "@repo/charts/podinfo/values-prod.yaml"
          to: "@artifact/podinfo/values.yaml"
          strategy: Merge
---
apiVersion: helm.toolkit.fluxcd.io/v2
kind: HelmRelease
metadata:
  name: podinfo
  namespace: apps
spec:
  interval: 15m
  releaseName: podinfo
  chartRef:
    kind: ExternalArtifact
    name: podinfo-composite

Monorepo Decomposition

The ArtifactGenerator can be used to decompose a monorepo into multiple independent artifacts with separate deployment lifecycles. For example:

apiVersion: source.extensions.fluxcd.io/v1beta1
kind: ArtifactGenerator
metadata:
  name: app-decomposer
  namespace: apps
spec:
  sources:
    - alias: git
      kind: GitRepository
      name: monorepo
  artifacts:
    - name: frontend
      originRevision: "@git"
      copy:
        - from: "@git/deploy/frontend/**"
          to: "@artifact/"
    - name: backend
      originRevision: "@git"
      copy:
        - from: "@git/deploy/backend/**"
          to: "@artifact/"
---
apiVersion: kustomize.toolkit.fluxcd.io/v1
kind: Kustomization
metadata:
  name: frontend-service
  namespace: apps
spec:
  interval: 15m
  prune: true
  sourceRef:
    kind: ExternalArtifact
    name: frontend
  path: ./
---
apiVersion: kustomize.toolkit.fluxcd.io/v1
kind: Kustomization
metadata:
  name: backend-service
  namespace: apps
spec:
  interval: 15m
  prune: true
  sourceRef:
    kind: ExternalArtifact
    name: backend
  path: ./

Each service gets its own ExternalArtifact with an independent revision. Changes to deploy/backend/ only trigger the reconciliation of the backend-service Kustomization, leaving other services untouched.

For more details on how to use the ArtifactGenerator API, please refer to the source-watcher documentation.

Supported Versions

Flux v2.4 has reached end-of-life and is no longer supported.

Flux v2.7 supports the following Kubernetes versions:

DistributionVersions
Kubernetes1.32, 1.33, 1.34
OpenShift4.19

Enterprise support Note that the CNCF Flux project offers support only for the latest three minor versions of Kubernetes. Backwards compatibility with older versions of Kubernetes and OpenShift is offered by vendors such as ControlPlane that provide enterprise support for Flux.

Upgrade Procedure

Note that in Flux v2.7, the following APIs have reached end-of-life and have been removed from the CRDs:

  • source.toolkit.fluxcd.io/v1beta1
  • kustomize.toolkit.fluxcd.io/v1beta1
  • helm.toolkit.fluxcd.io/v2beta1
  • image.toolkit.fluxcd.io/v1beta1
  • notification.toolkit.fluxcd.io/v1beta1

Step 1: Migrate to stable APIs in Git

Migrate all your resources to the Flux v2.6 stable APIs in your Git repositories by replacing the API version in the manifests:

  • Kustomization to kustomize.toolkit.fluxcd.io/v1
  • HelmRelease to helm.toolkit.fluxcd.io/v2
  • Bucket to source.toolkit.fluxcd.io/v1
  • GitRepository to source.toolkit.fluxcd.io/v1
  • HelmChart to source.toolkit.fluxcd.io/v1
  • HelmRepository to source.toolkit.fluxcd.io/v1
  • OCIRepository to source.toolkit.fluxcd.io/v1
  • Receiver to notification.toolkit.fluxcd.io/v1
  • Alert to notification.toolkit.fluxcd.io/v1beta3
  • Provider to notification.toolkit.fluxcd.io/v1beta3
  • ImageRepository to image.toolkit.fluxcd.io/v1beta2
  • ImagePolicy to image.toolkit.fluxcd.io/v1beta2
  • ImageUpdateAutomation to image.toolkit.fluxcd.io/v1beta2

Note that the ImageUpdateAutomation commit template should use the fields .Changed.FileChanges, .Changed.Objects and .Changed.Changes instead of the deprecated .Updated and .Changed.ImageResult fields.

Commit and push the changes to your Git repositories, then wait for Flux v2.6 to reconcile the new API versions.

Step 2: Migrate to stable APIs in Kubernetes etcd

Download and install the latest Flux CLI v2.7 using the instructions from installation guide.

Then run the following command on all your clusters where Flux is installed:

flux migrate

The command migrates the Flux custom resources stored in Kubernetes etcd to their latest API version, ensuring the Flux components can continue to function correctly after the 2.7 upgrade.

Running the migrate command is required unless you are using the Flux Operator which automatically handles the migration of Flux resources in etcd.

Step 3: Upgrade Flux components

Upgrade the Flux components to v2.7 by running flux bootstrap on your clusters with the same parameters you used during the initial installation.

At this step, you can also enable the new source-watcher component by adding the --components-extra=source-watcher flag.

If you are using the Flux Operator, make sure you’ve updated the operator to v0.30 or later, set FluxInstance.spec.distribution.version to 2.7.x and FluxInstance.spec.components to include source-watcher.

Step 4: Migrate the Image APIs in Git

If you are using the image update automation features, make sure to migrate the image definitions to the latest stable versions in your Git repositories by replacing the API version in the manifests:

  • ImageRepository to image.toolkit.fluxcd.io/v1
  • ImagePolicy to image.toolkit.fluxcd.io/v1
  • ImageUpdateAutomation to image.toolkit.fluxcd.io/v1

Finally, rerun the flux migrate command on all your clusters to migrate the image resources stored in Kubernetes etcd to their GA versions.

Over and out

If you have any questions or simply just like what you read and want to get involved, here are a few good ways to reach us:
